Overview
TimeHiVE provides efficient R functions for hierarchical moving-window analysis of coupled time series data. The toolkit implements:
- Parallel computation of Pearson and Mann-Kendall correlations
- Optimized O(n log n) implementations of statistical tests
- Customizable visualization of time-dependent relationships
- Statistical significance testing with adjustable thresholds
The software package here proposed allows to perform analyses on time series avoiding the arbitrary choice of the time window and allowing to appreciate the whole spectrum of possible results offered by this kind of statistical tools.

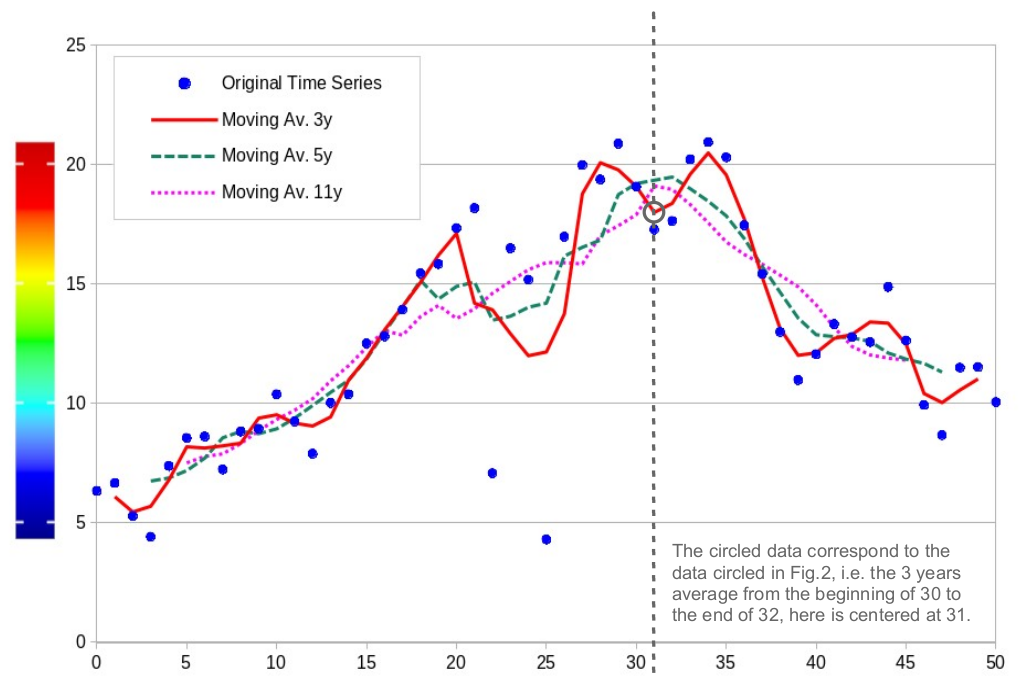

Figure 1: Different Moving Average vs Original Syntetic Time Series. Color scale on y-axis is meant only to match colors in Fig. 2. Source in inst/extdata/original.csv .

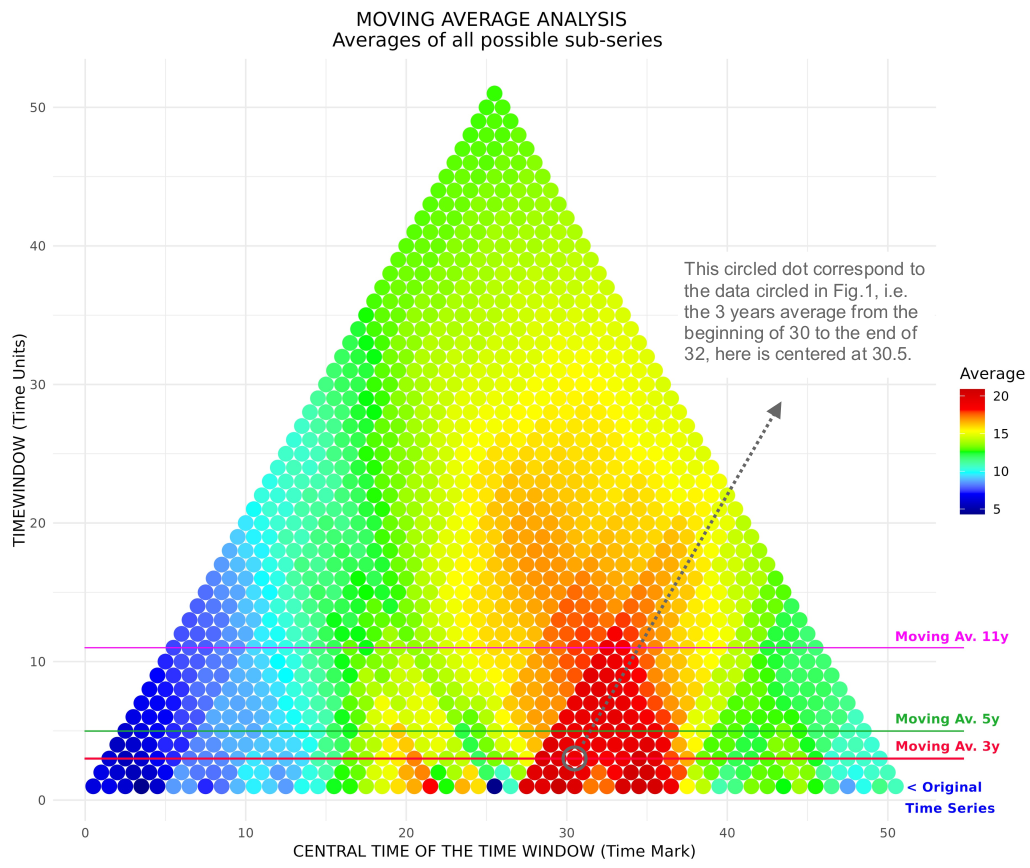

Figure 2: Representation of all the possible moving averages for the Original Syntetic Time Series, moving averages analyses represented in Fig. 1 are highlighted with comments on the results. Source in inst/extdata/original.csv .
library(TimeHiVE)
# Load example time series from the package data
series <- read.csv(system.file("extdata", "original.csv", package = "TimeHiVE"),
header = FALSE)[, 1]
# Perform analysis
results <- TH_single(
series = series,
m = 1,
s = 1,
mode = "avg"
)
# Visualize results
TH_plotc(results, mode = "avg")

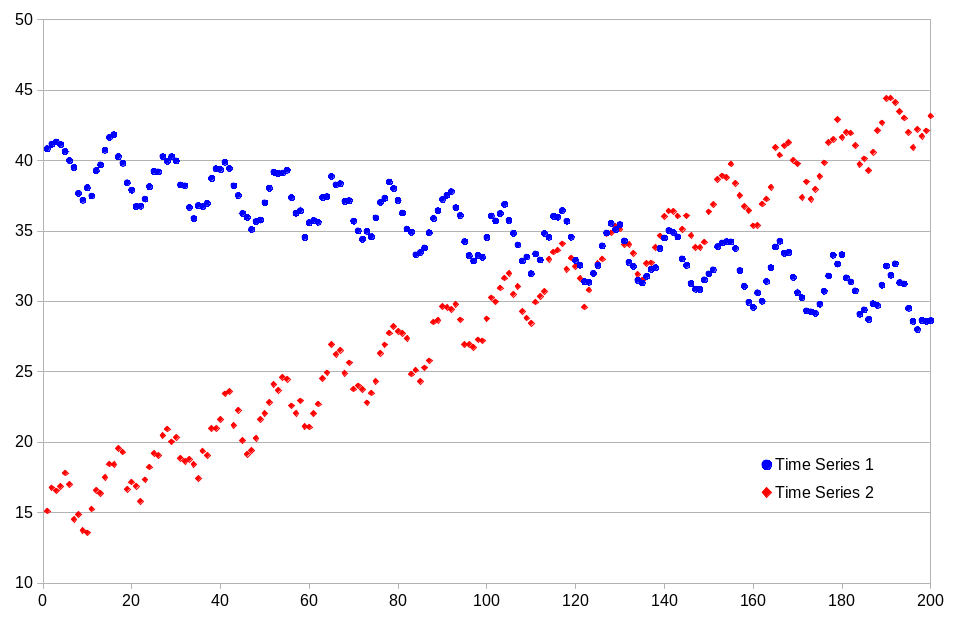

Figure 3: Representation of two Time Series positively correlated for short periods but negatively correlated for long periods. The series are built as: TS1 = 40 + 2*sin(t/2) - t/20 - rand(-2/3, 2/3) and TS2 = 15 + 2*sin(t/2) + t/7 - rand(-2/3, 2/3). The sine component creates short-term positive correlation, while the t/n terms drive long-term negative correlation. Source in inst/extdata/fseries1.csv and inst/extdata/fseries2.csv .
Figure 4: Here we show the Moving Correlation Analysis for the coupled Time Series represented in Fig. 4, the first row shows the results for Pearson’s correlation coefficient (Top Left) and relative p-values (Top Right), the second row shows the same analysis with MK’s correlation coefficients (Bottom Left) and relative p-values (Bottom Right). The inversion of the correlation between short and long period of analysis is quite clear. Source in inst/extdata/fseries1.csv and inst/extdata/fseries2.csv .
library(TimeHiVE)
# Load example time series from the package data
series1 <- read.csv(system.file("extdata", "fseries1.csv", package = "TimeHiVE"),
header = FALSE)[, 1]
series2 <- read.csv(system.file("extdata", "fseries2.csv", package = "TimeHiVE"),
header = FALSE)[, 1]
# Perform analysis
results <- TH_coupled(
series1 = series1,
series2 = series2,
m = 2,
s = 6,
alpha = 0.05,
mode = "both"
)
# Visualize results
TH_plotc(results, mask = FALSE, mode = "all")FIRST ROW: Pearson’s correlation coefficient (Top Left) and relative p-values (Top Right). SECOND ROW: same analysis with MK’s correlation coefficientes (Bottom Left) and relative p-values (Bottom Right). The inversion of the correlation between short and long period of analysis is quite clear.
Installation
You can install the development version from GitHub with:
# install.packages("remotes")
remotes::install_github("Ouroboro/TimeHiVE")Usage
Basic Example
The package includes example data files in inst/extdata/. After installation, you can load them using system.file().
library(TimeHiVE)
# Load example time series from the package data
series1 <- read.csv(system.file("extdata", "series1.csv", package = "TimeHiVE"),
header = FALSE)[, 1]
series2 <- read.csv(system.file("extdata", "series2.csv", package = "TimeHiVE"),
header = FALSE)[, 1]
# Perform analysis
results <- TH_coupled(
series1 = series1,
series2 = series2,
m = 2,
s = 6,
alpha = 0.05,
mode = "both"
)
# Visualize results
TH_plotc(results, mask = TRUE, mode = "all")Advanced Usage
For functions TH_plots and TH_plotc, you can use significance values to mask the output of statistical tests depending on the value you chose previously.
results2 <- TH_coupled(series1, series2) # using the same series1, series2 loaded above
Fig5 <- "Fig5.png"
Fig6 <- "Fig6.png"
p <- TH_plotc(results2, output_file = Fig5)
p <- TH_plotc(results2, output_file = Fig6, mask = TRUE)
Output for Fig. 5 unmasked.
Output for Fig. 6 masked.
If the moving-window statistical analyses proposed by the previous functions are not sufficient, functions TH_tweak() and TH_plott() allow you to use custom functions and possibly customize the color scales and tile intervals during the display phase. An exhaustive example follows shortly.
### START Customized Functions ###
harmean_fun <- function(series) {
series <- series[!is.na(series)]
n <- length(series)
sol <- n / sum(1/series, na.rm = TRUE)
return(sol)
}
mean_fun <- function(x) mean(x)
diffmean_fun <- function(series) {
series <- series[!is.na(series)]
x <- harmean_fun(series)
y <- mean_fun(series)
sol <- x-y
return(sol)
}
skew_fun <- function(series) {
series <- series[!is.na(series)]
n <- length(series)
avg <- mean(series)
sd_camp <- sd(series)
sol <- sum((series - avg)^3 / (sd_camp^3)) / n
return(sol)
}
### END Customized Functions ###
# Load a single series for the tweak example
single_series <- read.csv(system.file("extdata", "tweak_series.csv", package = "TimeHiVE"),
header = FALSE)[, 1]
results <- TH_tweak(
harmean_fun,
mean_fun,
diffmean_fun,
skew_fun,
series = list(single_series),
param = 0.05
)
### START Customized Color Palette ###
skew = {
neg <- colorRampPalette(c("green4", "green"))(33)
pos <- colorRampPalette(c("magenta", "magenta4"))(33)
c(neg, "white", pos)
}
### END Customized Color Palette ###
Fig7 <- "Fig7.png"
p <- TH_plott(results, output_file = Fig7,
colorscales = list(
"avg",
"avg",
c("magenta", "purple", "blue", "cyan", "white"),
skew),
colorlimits = list(
c(0, 35),
c(0, 35),
NULL,
NULL))
Output for Fig. 7 single series tweak.
### START Customized Functions ###
pearson_fun <- function(x, y) cor.test(x, y, method = "pearson")$estimate
diffmax_fun <- function(serie1, serie2, na.rm = TRUE) {
max1 <- sum(serie1, na.rm = na.rm)
max2 <- sum(serie2, na.rm = na.rm)
sol <- (max1-max2)
return(sol)
}
sqrmean_fun <- function(serie1, serie2, na.rm = TRUE) {
x <- sum(serie1, na.rm = na.rm)
y <- sum(serie2, na.rm = na.rm)
sol <- sqrt(sqrt((x*y)^4))
return(sol)
}
### END Customized Functions ###
# Load two coupled series for the tweak example
coupled1 <- read.csv(system.file("extdata", "tweak_series1.csv", package = "TimeHiVE"),
header = FALSE)[, 1]
coupled2 <- read.csv(system.file("extdata", "tweak_series2.csv", package = "TimeHiVE"),
header = FALSE)[, 1]
results <- TH_tweak(
pearson_fun,
diffmax_fun,
sqrmean_fun,
series = list(coupled1, coupled2),
param = 0.05
)
Fig8 <- "Fig8.png"
p <- TH_plott(results, output_file = Fig8,
colorscales = list(c("blue", "white", "red"),
c("green", "yellow", "purple"),
"avg"))
Output for Fig. 8 coupled series tweak.
Main Functions
-
TH_single(): Perform hierarchical moving-window analysis for single series -
TH_coupled(): Perform hierarchical moving-window analysis for coupled series -
TH_tweak(): Perform customized hierarchical moving-window analysis for coupled or single series -
TH_plots(): Visualize analysis results fromTH_single() -
TH_plotc(): Visualize analysis results fromTH_coupled() -
TH_plott(): Visualize analysis results fromTH_tweak(), no masking. -
TH_MK_Trend(): Mann-Kendall trend test -
TH_MK_Corr(): Mann-Kendall correlation test
Documentation
For detailed documentation see:
?TH_single
?TH_coupled
?TH_tweak
?TH_plots
?TH_plotc
?TH_plott
?TH_MK_Trend
?TH_MK_CorrContributing
Contributions are welcome! Please follow these steps:
- Fork the repository
- Create your feature branch (
git checkout -b feature/your-feature) - Commit your changes (
git commit -am 'Add some feature') - Push to the branch (
git push origin feature/your-feature) - Open a Pull Request
License
This package is licensed under the GNU General Public License v3.0 (GPL-3.0). See the LICENSE file for details.
